01. Main
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC95-01840A | COVER-FRONT ML-4210ND,SEC,SPLIT GRAY | Find 1 |
| 2 | JC90-01143B | CASSETTE ML-4210ND,SEC | Find 2 |
| 3 | JC95-01838A | COVER-RIGHT ML-4210ND,SEC,SPLIT GRAY | Find 3 |
| 4 | JC93-00835S | FRAME SL-M3370FD,SEC,XAA | Find 4 |
| 5 | JC63-04137A | COVER-LEFT ML-4210ND,HIPS,2.5,353.4,256, | Find 5 |
| 6 | JC44-00097E | SMPS-V1 SCX-5737FW,PSPN-Type3-V1,Flyback | Find 6 |
| 7 | JC92-02603N | PBA-MAIN SL-M3370FD,PBA-MAIN,190*118.2 | Find 7 |
| 8 | JC90-01031C | DUPLEX ML-4210ND,SEC | Find 8 |
| 9 | JC91-01023A | FUSER ML-3700,SEC,WORLD,110V | Find 9 |
| 10 | JC93-00334A | FRAME-REAR ML-3710,SEC,WORLD | Find 10 |
| 11 | JC95-01303C | COVER-REAR SL-4070FR,SEC | Find 11 |
| 12 | JC97-04065A | LSU ML-3750,SEC,Single,A4(Ltr),600,S1,78 | Find 12 |
| 13 | JC95-01847B | COVER-MIDDLE LOWER SL-M3370FD,SEC | Find 13 |
| 14 | JC95-01839B | COVER-MIDDLE UPPER ADF SL-M3370FD,SEC | Find 14 |

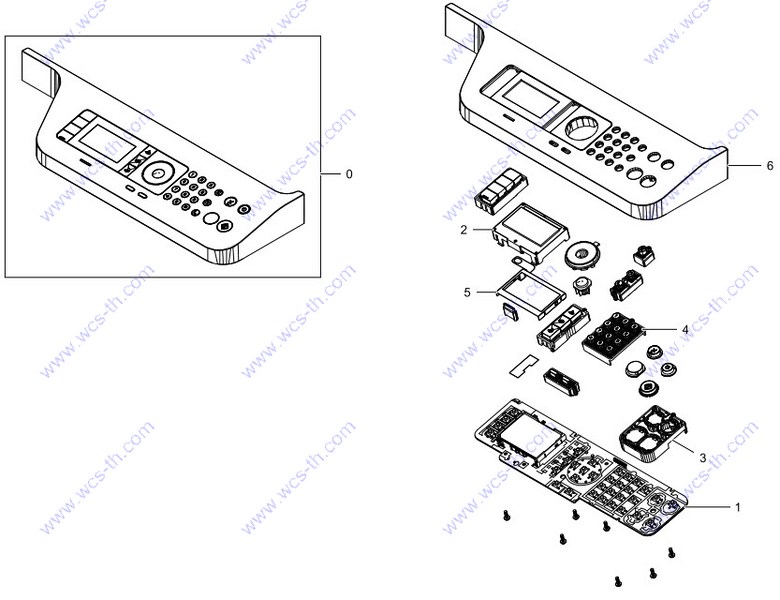

| 15 | JC97-04320G | OPE SL-M3370FD,SEC,ADF, English | Find 15 |

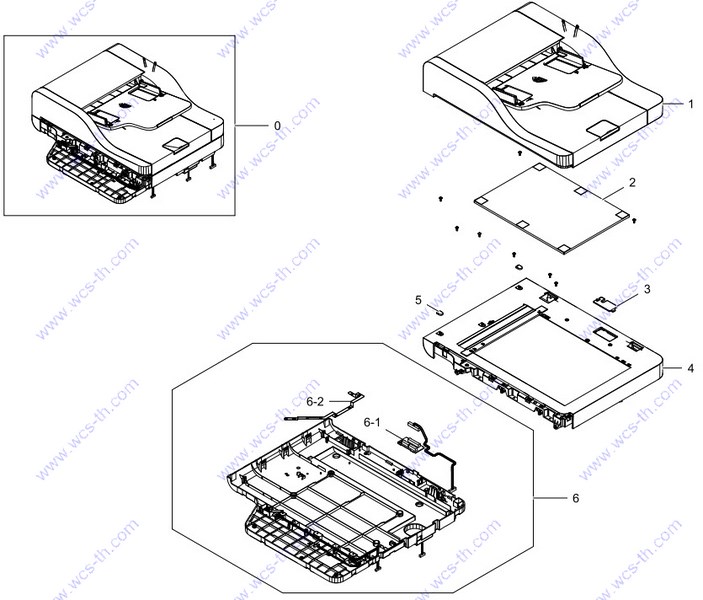

| 16 | JC97-04315A | SCANNER SCX-5742FR | Find 16 |
| 3-1 | JC63-04140A | COVER-RIGHT SL-M4020ND,ABS+PC,2.5,354.3, | Find 3-1 |
| 3-2 | JC63-04141A | COVER-DIMM SL-M4020ND,ABS+PC,2.5,103.7,1 | Find 3-2 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

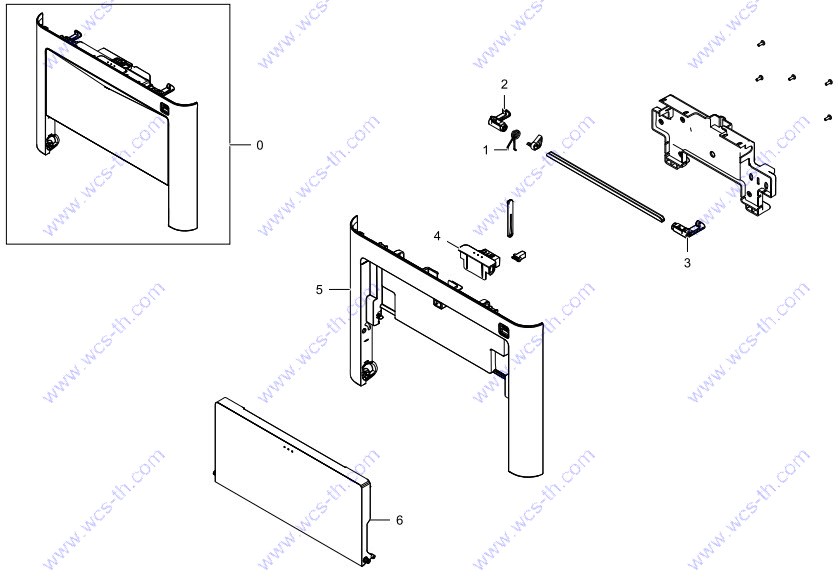

02. COVER-FRONT
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC95-01840A | COVER-FRONT ML-4210ND,SEC,SPLIT GRAY | Find 0 |
| 1 | 6107-003474 | SPRING-TS SWPB,1.0,12.1,12.1,3.05,3.05 | Find 1 |
| 2 | JC64-00368A | LOCKER-FRONT_R CLP-310,POM,BLACK,D-Type | Find 2 |
| 3 | JC64-00367A | LOCKER-FRONT_L CLP-310,POM,BLACK,D-Type | Find 3 |
| 4 | JC64-00888A | BUTTON-FRONT ML-4210ND,ABS,62.1,SPLIT BR | Find 4 |
| 5 | JC63-04134A | COVER-FRONT ML-4210ND,HIPS,2.5,365.6,265 | Find 5 |
| 6 | JC63-04147A | COVER-MANUAL SL-M4020ND,HIPS,2.7,287.5,1 | Find 6 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

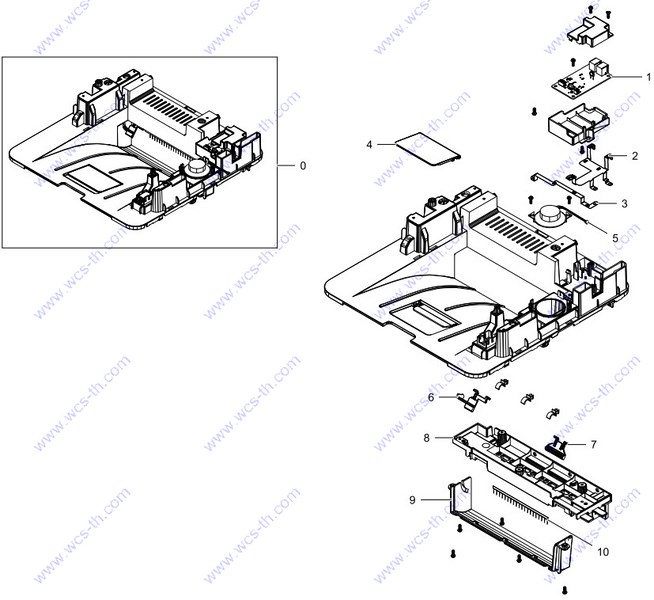

03. COVER-MIDDLE LOWER
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC95-01847B | COVER-MIDDLE LOWER SL-M3370FD,SEC | Find 0 |
| 1 | JC92-02569A | PBA-LIU cuhead,CX95110-22Z,SPI,3.3V,90MM | Find 1 |
| 2 | JC63-04068A | GROUND-FAX SL-M4075FR,PBS-C5210,0.2,65.2 | Find 2 |
| 3 | JC63-03090A | GROUND-EXIT SCX-4833FD,SUS,0.2,99.3,28.2 | Find 3 |
| 4 | JC61-05515A | STACKER-MAIN CLX-6260ND,ABS,2.2,90.3,67. | Find 4 |
| 5 | 3001-002262 | SPEAKER 0.3W,8ohm,81dB,400Hz,50x16.4mm | Find 5 |
| 6 | JC61-04098A | STACKER-BIN_FULL Magpie,PC,2,48.54,35.2, | Find 6 |
| 7 | JC72-01343A | PMO-SUB_M_STACKER ML-1520,PC,39*25.5*3.5 | Find 7 |
| 8 | JC63-04185A | COVER-PATH SL-M4075FR,HIPS,HIPS-5197 | Find 8 |
| 9 | JC63-04136A | COVER-EXIT SL-M4020ND,ABS+PC,2.5,250,62. | Find 9 |
| 10 | JC67-00055B | BRUSH-ANTISTATIC SCX-4833FD,AL+THUNDERON | Find 10 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

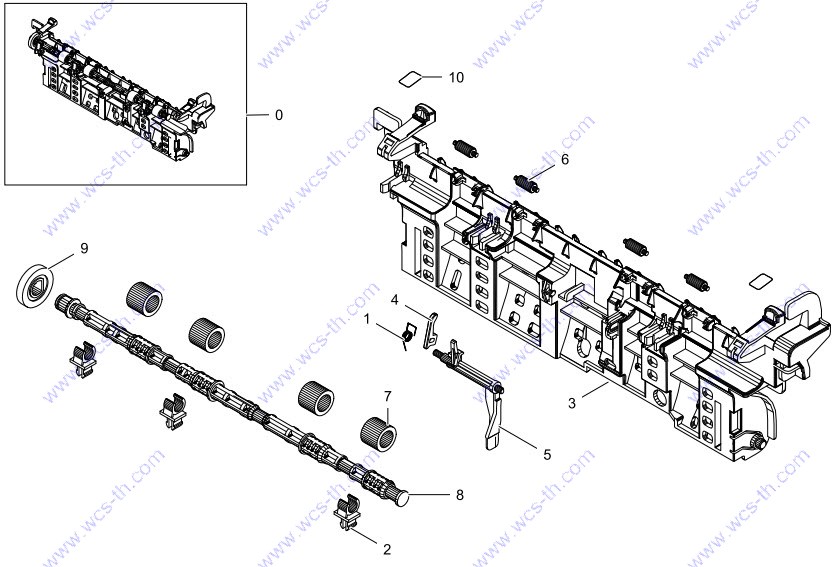

04. FRAME REAR
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC93-00334A | FRAME-REAR ML-3710,SEC,WORLD | Find 0 |
| 1 | 6107-002670 | SPRING-ETC SUS304,PI0.2,ID4.5,OD4.9,8.1, | Find 1 |
| 2 | JC61-02158A | BUSH-TX ML-3471ND/SEE,POM(M90-44),2.5,16 | Find 2 |
| 3 | JC61-04084A | GUIDE-REAR ML-3700ND,PC,2.0t,PATH | Find 3 |
| 4 | JC61-04133A | HOLDER-ACTUATOR ML-3700,TEFLON,2.0,17.4 | Find 4 |
| 5 | JC66-02774A | ACTUATOR-EXIT ML-3700ND,NYLON,2.0t,46.7, | Find 5 |
| 6 | JC66-01661A | ROLLER-IDLE_EXIT ML-2851ND,PFA | Find 6 |
| 7 | JC66-02955A | ROLLER-SILICON_EXIT ML-3700,SILICON | Find 7 |
| 8 | JC66-02773A | SHAFT-EXIT_F/UP ML-3700ND,PET+GF45,236.4 | Find 8 |
| 9 | JC66-02777A | GEAR-EXIT_Z19 ML-3700ND,POM,1,19,NTR,21. | Find 9 |
| 10 | JC68-02610A | LABEL-ONE TOUCH ML-3700,WHITE PET,0.1,7, | Find 10 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

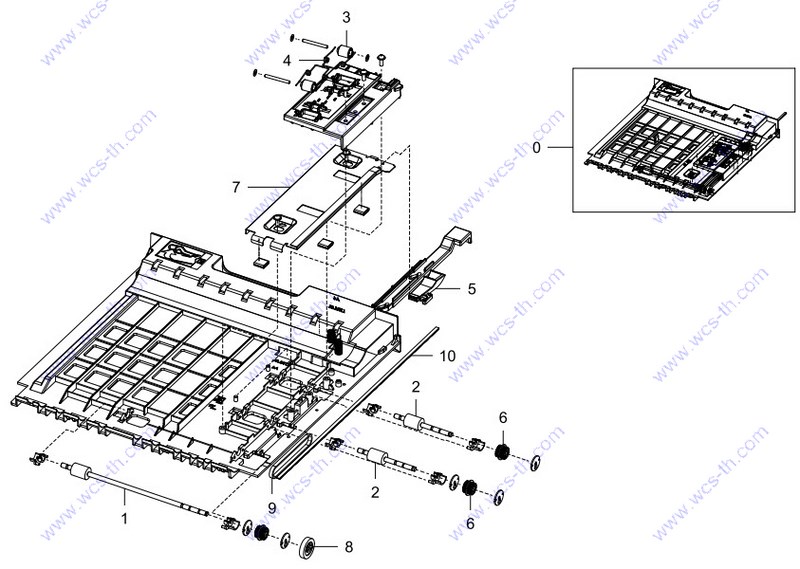

05. DUPLEX
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC90-01031C | DUPLEX ML-4210ND,SEC | Find 0 |
| 1 | JC66-01657A | ROLLER-FEED_DUP2 ML-2851ND,NBR,SUM22,4 | Find 1 |
| 2 | JC66-00901A | ROLLER-FEED_DUP ML-3560,NBR,SUM22,4 | Find 2 |
| 3 | JC66-02980A | ROLLER-DUPLEX_IDLE ML-5015ND,POM,SW-01 | Find 3 |
| 4 | 6107-003256 | SPRING-TS SUS304,NO,0.55,4.05,3.5,2-5.8, | Find 4 |
| 5 | JC61-04055A | GUIDE-PAPER_DUPLEX ML-3700ND,PC,1.5,16.2 | Find 5 |
| 6 | JC66-00899A | PULLEY-18_DUP ML-3560,POM,HB,WHITE, 4.1 | Find 6 |
| 7 | JC61-04053A | BRACKET-DUPLEX_ALIGN ML-3700ND,SECC,0.6, | Find 7 |
| 8 | JC66-00038A | GEAR-EXIT F/DOWN ML-4500,POM,0.8,BLACK,F | Find 8 |
| 9 | 6602-001588 | BELT-TIMING GEAR 32S2M152,CR+GF+NF,T3.2, | Find 9 |
| 10 | JC66-20901A | BELT-FLAT RUBBER L280, W3.2, S2M, 140 | Find 10 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

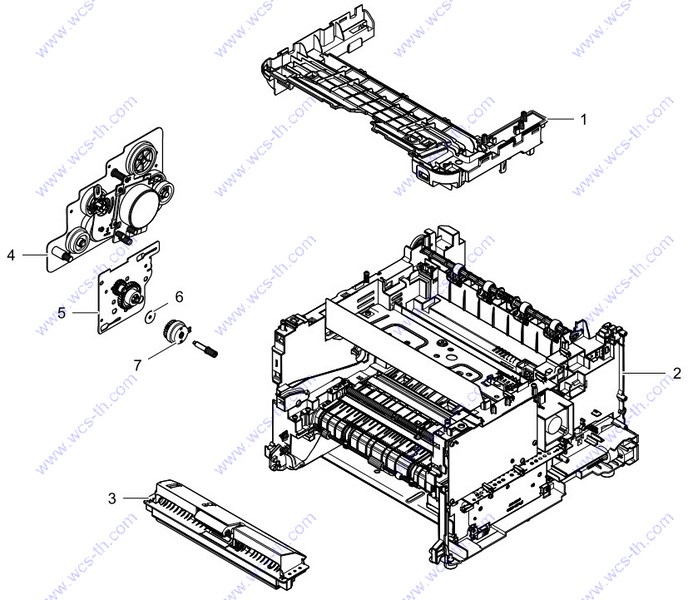

06. FRAME
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC63-04144A | COVER-TOP_INNER SL-M4025ND,ABS,SPLIT GRA | Find 1 |
| 2 | JC93-00836C | FRAME-ETC SL-M3370FD,SEC | Find 2 |
| 3 | JC90-01044B | MP ML-4210ND,SEC | Find 3 |
| 4 | JC93-00544B | DRIVE ML-4210ND,SEC | Find 4 |
| 5 | JC93-00545B | DRIVE-FEED1 ML-3750 | Find 5 |
| 6 | JC60-00037A | SPACER-CLUTCH ML-2851ND/XAA,POLY,ID4,OD1 | Find 6 |
| 7 | JC47-00033A | CLUTCH-ELECTRIC 2.5,24,1,120mA,200Ohm | Find 7 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

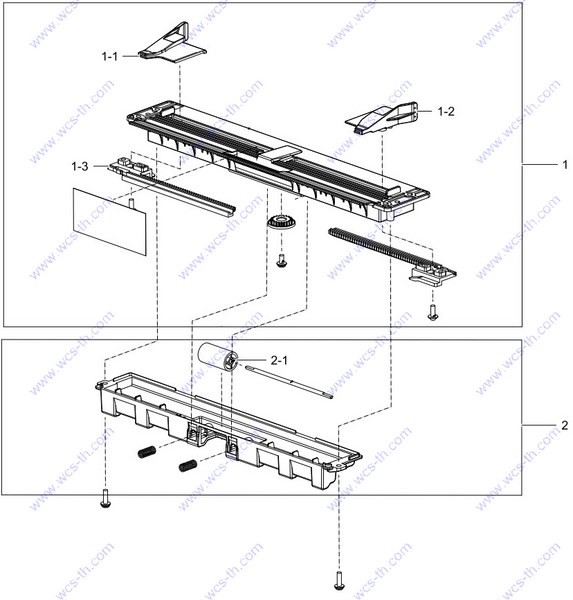

07. MP
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC90-01042B | MP-GUIDE LOWER ML-4210ND,SEC | Find 1 |
| 2 | JC90-01038C | MP-HOLDER IDLE ML-4210ND,SEC | Find 2 |
| 1-1 | JC70-00547A | ADJUST-MANUAL_R ML-2851ND,HIPS,43,26.3,M | Find 1-1 |
| 1-2 | JC70-00546A | ADJUST-MANUAL_L ML-2851ND,HIPS,43,26.3,M | Find 1-2 |
| 1-3 | JC70-00304A | ADJUST ML-1710,POM,NTR,ADJUST/UNC | Find 1-3 |
| 2-1 | JC66-02798A | ROLLER-IDLE ML-3700,POM,NW-02 | Find 2-1 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

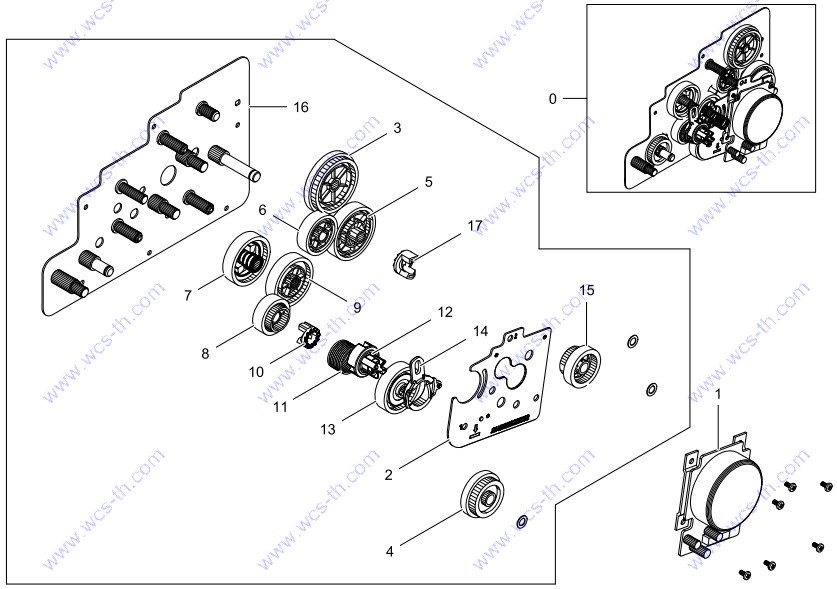

08. DRIVE
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC93-00544B | DRIVE ML-4210ND,SEC | Find 0 |
| 1 | JC31-00075B | MOTOR BLDC ML-4210ND,3/10,37,24,1200/190 | Find 1 |
| 2 | JC61-04918A | BRACKET-MOTOR ML-3710,SECC,1.2,95,85 | Find 2 |
| 3 | JC66-02779A | GEAR-EXIT 95-81 ML-3310,POM,0.5/0.5,95/8 | Find 3 |
| 4 | JC66-02790A | GEAR-FEED 65-28 ML-3710,POM,0.5/1.0,65/2 | Find 4 |
| 5 | JC66-02781A | GEAR-FUSER DR IN 79 ML-3710,POM,0.5,79,N | Find 5 |
| 6 | JC66-02785A | GEAR-IDLE 59 ML-3710,POM,0.5,59,BLACK,F2 | Find 6 |
| 7 | JC66-02787A | GEAR-COUPLER 73 ML-3710,POM,0.5,73,BLACK | Find 7 |
| 8 | JC66-02788A | GEAR-OPC DR OUT 53 ML-3710,POM,0.5,53,BL | Find 8 |
| 9 | JC66-02786A | GEAR-IDLE 73 ML-3710,POM,0.5,73,BLACK,F2 | Find 9 |
| 10 | JC70-00589A | HUB-CLUTCH ML-3710ND,POM,ID10.4,F20-02,N | Find 10 |
| 11 | 6107-002785 | SPRING-CS SUS304WPB,D13,18.6,T1,ID11 | Find 11 |
| 12 | JC67-00504A | COUPLER ML-3710ND,POM,OD25,NATURAL,F20-0 | Find 12 |
| 13 | JC66-02789A | GEAR-OPC DR IN 69 ML-3710,POM,0.5,69,BLA | Find 13 |
| 14 | JC67-00503A | COUPLER-CAM ML-3710ND,PC,NH-1035,BLK | Find 14 |
| 15 | JC66-02782A | GEAR-FUSER DR 29 ML-3710ND,PA66,1.0,29,B | Find 15 |
| 16 | JC61-04916A | BRACKET-GEAR ML-3710,SECC,1.2,133,214 | Find 16 |
| 17 | JC66-00340A | GEAR-HUB CLUTCH POM,11.3,11.3,11.3,NW-02 | Find 17 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

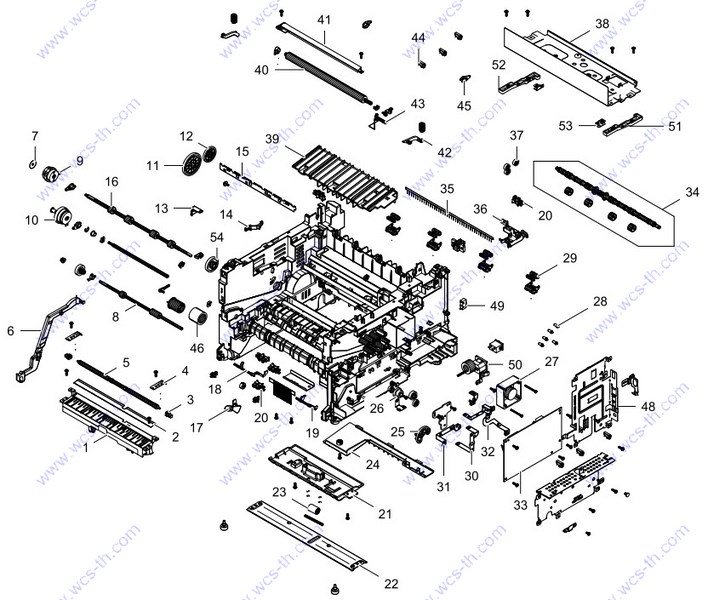

09. FRAME-ETC
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC61-04064A | GUIDE-FRAME DUPLEX ML-3700,ABS,2.3,250,5 | Find 1 |
| 2 | JC63-02956A | SHEET-DUPLEX PATH ML-3710,PET+TAPE NITTO | Find 2 |
| 3 | JC61-00585A | BUSH-M-FEED IDLE ML-1710,POM,2.1,4.2 | Find 3 |
| 4 | JC61-00914A | PLATE-P-PUSH BUSHING SCX-4920N,EGI-SECC, | Find 4 |
| 5 | JC66-00527A | SHAFT-FEED IDLE ML-1510,SUM 24L,223,8,ST | Find 5 |
| 6 | JC66-02770A | LEVER-COUPLING ML-3710,PC,3.0,184.4,126. | Find 6 |
| 7 | JC60-00037A | SPACER-CLUTCH ML-2851ND/XAA,POLY,ID4,OD1 | Find 7 |
| 8 | JC66-02797A | ROLLER-FEED ML-3700,EPDM,SUM22,5 | Find 8 |
| 9 | JC47-00033A | CLUTCH-ELECTRIC 2.5,24,1,120mA,200Ohm | Find 9 |
| 10 | JC47-00036B | CLUTCH-ELECTRIC 2.5,45,0.6,120mA,200Ohm | Find 10 |
| 11 | JC66-02778A | GEAR-EXIT IDLE 96 ML-3310,POM,0.5,96,NTR | Find 11 |
| 12 | JC66-02780A | GEAR-EXIT 65 ML-3310,POM,0.5,65,NTR,F20- | Find 12 |
| 13 | JC63-02875A | GROUND-BRKT GEAR ML-3700,SUS,0.2,18,18,G | Find 13 |
| 14 | JC72-00983A | LOCK SLIDER ML-1710,POM(DELIN 900P),WHT | Find 14 |
| 15 | JC61-00604A | PLATE-P-SAW ML-1400,SUS304,0.15,15.1,216 | Find 15 |
| 16 | JC66-02834A | ROLLER-FEED REGI ML-3200,EPDM,SUM22,6 | Find 16 |
| 17 | JC66-02762A | ACTUATOR-EMPTY ML-3710,POM,3.0,43.1,31.2 | Find 17 |
| 18 | JC66-02763A | ACTUATOR-REGI ML-3710,PC+GF,3.0,30.6,21. | Find 18 |
| 19 | JC66-02764A | ACTUATOR-FEED ML-3710,PC+GF,3.0,17.5,20. | Find 19 |
| 20 | 0604-001393 | PHOTO-INTERRUPTER TR,75mW,BGA,TR | Find 20 |
| 21 | JC61-02752A | FRAME-DUPLEX PATH_EX ML-2851ND,HIPS,BLAC | Find 21 |
| 22 | JC61-04069A | PLATE-FRAME BOTTOM ML-3700,EGI-SECC,1.0, | Find 22 |
| 23 | JC66-01022A | ROLLER-M_IDLE SCF SCX-6345N,POM,500CL | Find 23 |
| 24 | JC67-00291A | CAP-HARNESS ML-2851ND,ABS V0,2,241.1,76. | Find 24 |
| 25 | JC61-02265A | BRACKET-SWING DUPLEX ML-2851ND/XAA,PPS,5 | Find 25 |
| 26 | JC66-01651A | GEAR-RDCN 23/23 ML-2851ND/XAA,POM,0.6/0. | Find 26 |
| 27 | JC31-00146A | FAN Type4,24,100mA,2.794mmH20,0.374m3/m | Find 27 |
| 28 | JC70-40912A | SHAFT ML-5000A,STAINLESS-STS303,6,NI,T4. | Find 28 |
| 29 | JC93-00324A | FRAME-ROLLER DECURL ML-3700 | Find 29 |
| 30 | JC63-02874A | GROUND-BRKT PAPER ML-3700,SUS,0.2,54,43. | Find 30 |
| 31 | JC63-02876A | GROUND-HVPS ML-3700,SUS,0.2,74.3,15,GROU | Find 31 |
| 32 | JC63-02877A | GROUND-BRACKET LSU ML-3700,SUS,0.2,48.5, | Find 32 |
| 33 | JC44-00197A | HVPS 24V,21.6V27.6V,MAX 5KV,MAX-2KV,600 | Find 33 |
| 34 | JC93-00323A | FRAME-ROLLER EXIT ML-3700 | Find 34 |
| 35 | JC67-00055A | BRUSH-ANTISTATIC 531P SF-531P,AL+THUNDER | Find 35 |
| 36 | JC61-04067A | HOLDER-EXIT SENSOR ML-3710,ABS,2,45.5,44 | Find 36 |
| 37 | JC66-01635A | GEAR-SWING DR 19 ML-2851ND/XAA,POM,0.6,1 | Find 37 |
| 38 | JC61-04915A | BRACKET-LSU ML-3750ND,EGI-SECC,1.0T,305, | Find 38 |
| 39 | JC61-04091A | GUIDE-TR RIB ABS,2.3,239.2,79.8,BLACK,PA | Find 39 |
| 40 | JC66-02842A | ROLLER-TRANSFER Magpie,15.0 (mm),NBR+ECO | Find 40 |
| 41 | JC61-02236A | PLATE-EARTH-TRANSFER ML-2851ND,EGI-SECC, | Find 41 |
| 42 | JC72-00985A | CORE ROTOR ML-1710,POM(M90-44),BLK | Find 42 |
| 43 | JC65-00047A | TERMINAL-TR ML-3700,SUS304,0.5PI | Find 43 |
| 44 | 6502-001130 | CABLE CLAMP DACS-3N,16.67 * 4,Nylon66,BL | Find 44 |
| 45 | JC72-41191B | SHAFT ML-2150,POM,BLK,DE8903 | Find 45 |
| 46 | JC73-00340A | RUBBER-PICK UP ML-3700,EPDM80%+IR20% | Find 46 |
| 48 | JC63-04078A | SHIELD-CONTROLLER SL-M4025ND,EGI-SECC,0. | Find 48 |
| 49 | JC39-01469A | HARNESS-REARCOVER & BINFULL SENSOR ML-3710 | Find 49 |
| 50 | JC39-01482A | HARNESS-AC INLET-1 ML-3710,UL1617,3pin,W | Find 50 |
| 51 | JC61-04912A | HOLDER-BRKT_LSU_RIGHT ML-3750ND,PC+GF,T2 | Find 51 |
| 52 | JC61-04911A | HOLDER-BRKT_LSU_LEFT ML-3750ND,PC+GF,T2. | Find 52 |
| 53 | JC63-03449A | GROUND-BRKT EXTENSION ML-3750ND,SUS,0.2, | Find 53 |
| 54 | JC66-03311A | GEAR-FEED IDLE 29 ML-3710,POM,1,29,BLACK | Find 54 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
10. CASSETTE
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC90-01143B | CASSETTE ML-4210ND,SEC | Find 0 |
| 1 | JC90-01174D | CASSETTE-COVER HANDLE ML-4210ND,SEC | Find 1 |
| 2 | JC90-01173C | CASSETTE-FRAME ML-4210ND,SEC | Find 2 |
| 1-1 | JC64-00890A | HANDLE-CASSETTE ML-4210ND,HIPS,2.5,287.4 | Find 1-1 |
| 1-2 | JC64-00609D | INDICATOR-PAPER ML-4210ND,ABS,2.5,Brown | Find 1-2 |
| 2-1 | JC90-01106A | CASSETTE-GUIDE RIGHT ML-2955ND,SEE | Find 2-1 |
| 2-2 | JC90-01105C | CASSETTE-GUIDE REAR ML-4210ND,SEC | Find 2-2 |
| 2-3 | JC90-01063B | CASSETTE SUB-RETARD ML-4210ND,EPDM | Find 2-3 |
| 2-4 | JC73-00141A | RPR-PAD CASSETTE ML-1510,Urethan Sponge, | Find 2-4 |
| 2-5 | JC66-03004A | GEAR-PINION ML-2950ND,POM,0.5,32,3.9,WHI | Find 2-5 |
| 2-6 | JC64-00611A | LOCKER-PLATE ML-3710,POM,NTR,138.5, 29.5 | Find 2-6 |
| 2-7 | JC64-00610A | LOCKER-CASSETTE ML-3710,POM,NTR,41.5, 15 | Find 2-7 |
| 2-8 | JC63-02932A | GROUND-CASSETTE SUS,0.2,UNC | Find 2-8 |
| 2-9 | JC63-02917D | COVER-CASSETTE ML-4210ND,ABS,2.5,21.4,71 | Find 2-9 |
| 2-10 | JC61-04922A | PLATE-KNOCK UP ML-3310ND,EGI-SECC,0.8,26 | Find 2-10 |
| 2-11 | JC61-04920D | FRAME-CASSETTE ML-4210ND,ABS,Split gray, | Find 2-11 |
| 2-12 | JC61-04397A | GUIDE-ADJUST_L ML-2950ND,ABS,2.0,135.52, | Find 2-12 |
| 2-14 | JC61-04327A | HOLDER-ROLLER ML-3710ND,ABS,2,66,39,HB | Find 2-14 |
| 2-15 | 6107-002779 | SPRING-CS SWP,ZINC,0.9,17.9,56.3,17,18.8 | Find 2-15 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
11. SCANNER
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-04315A | SCANNER SCX-5742FR | Find 0 |
| 1 | JC97-04164A | ADF CLX-6260ND | Find 1 |
| 2 | JC01-00060A | SHEET-WHITE SCX-4833FD,White_PP+Black_Sp | Find 2 |
| 3 | JC63-03836A | COVER-CONNECTOR CLX-6260ND,HIPS,W27,L58. | Find 3 |
| 4 | JC97-04313A | PLATEN SCX-5742FR | Find 4 |
| 5 | JC63-03834A | COVER-SCAN CLX-6260ND,HIPS,3.2,14.3,10.4 | Find 5 |
| 6 | JC97-04345A | PLATEN-LOWER ADF SCX-5742FD | Find 6 |
| 6-1 | JC92-02426A | PBA-ADF SCX-4729FD,SEC,ADF,60x25mm,FR-1, | Find 6-1 |
| 6-2 | JC63-03716A | GROUND-SCAN LOWER CLX-4195FW,STAINLESS-S | Find 6-2 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

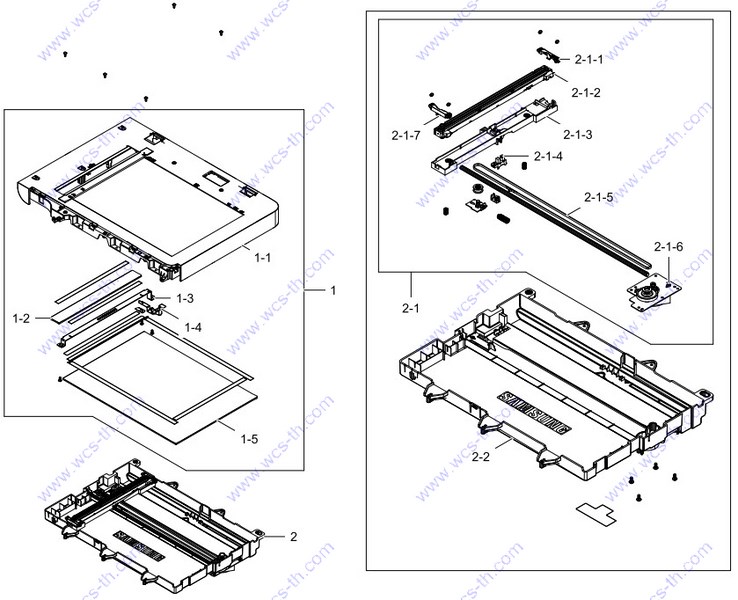

12. PLATEN
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC97-04167A | PLATEN-UPPER CLX-6260ND | Find 1 |
| 2 | JC97-04346A | PLATEN-LOWER SCX-5742 | Find 2 |
| 1-1 | JC63-03837A | COVER-PLATEN UPPER CLX-6260ND,HIPS,W326, | Find 1-1 |
| 1-2 | JC01-00058A | GLASS-ADF 252*28.5,2.8T | Find 1-2 |
| 1-3 | JC61-05642A | BRACKET-GUIDE PATH CLX-6260ND,EGI-SECC,T | Find 1-3 |
| 1-4 | JC63-03839A | GROUND-PLATEN UPPER CLX-6260ND,PBS-C5210 | Find 1-4 |
| 1-5 | JC01-00059A | GLASS-PLATEN 345.8*249,2.8 | Find 1-5 |
| 2-1 | JC97-04307A | PLATEN- FH SCX-5742FR | Find 2-1 |
| 2-2 | JC61-05632A | FRAME-PLATEN CLX-6260ND,HIPS,W302,L401.1 | Find 2-2 |
| 2-1-1 | JC61-05641A | GUIDE-CIS REAR CLX-6260ND,POM,W7.4,L43.2 | Find 2-1-1 |
| 2-1-2 | 0609-001482 | CONTACT IMAGE SENSOR 217mm,10368dot,0.5m | Find 2-1-2 |
| 2-1-3 | JC61-05646A | BRACKET-CIS CLX-6260ND,ABS+PC,W40.44,L23 | Find 2-1-3 |
| 2-1-4 | 0604-001415 | PHOTO-INTERRUPTER TR,DIP-4,BK | Find 2-1-4 |
| 2-1-5 | 6602-002970 | BELT-TIMING GEAR 759teeth,poly urethan,b | Find 2-1-5 |
| 2-1-6 | JC97-04170A | PLATEN-DRIVETRAIN CLX-6260ND | Find 2-1-6 |
| 2-1-7 | JC61-05634A | GUIDE-CIS FRONT CLX-6260ND,POM,W7.4,L43. | Find 2-1-7 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
13. OPE
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-04320G | OPE SL-M3370FD,SEC,ADF, English | Find 0 |
| 1 | JC92-02522A | PBA-OPE CLX-6260FD,SEC,OPE,FR1,1L,4LINE | Find 1 |
| 2 | JC63-03728A | COVER-LCD CLX-4195FN,PC,73.4,52.65 | Find 2 |
| 3 | JC61-05625A | HOLDER-KEY CLX-6260ND,ABS,66.9,51.2,BLAC | Find 3 |
| 4 | JC64-00817A | KEY-NUMERICAL CLX-6260ND,ABS,60.06,47.2, | Find 4 |
| 5 | JC63-03718A | GROUND-LCD CLX-4195FN,STAINLESS-STS304,0 | Find 5 |
| 6 | JC63-03781T | COVER-OPE SL-M3370FD,ABS,138.6,382.3,SEC | Find 6 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
